MPCAN-CAN-U2C-CANtoUSB

General Information:

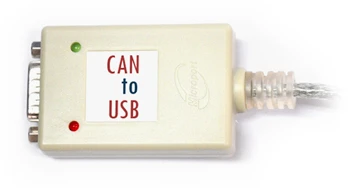

CANtoUSB
 is a very small and inexpensive dongle that plugs into any PC USB Port and gives an instant CAN connectivity. This means it can be treated by software as a standard COM Port (serial RS232 port) which eliminates the need for any extra drivers or by installing a direct driver DLL for faster communications and higher CAN bus loads.
Sending and receiving can be done in standard ASCII format or using the windows threaded CANtoUSB DLL or ActiveX controller.

Dimensions:

Length: 55mm, Width: 36mm, Height: 16mm. Blue Transparent Case, 1 meter shielded USB cable.

Specifications:
  • Can handle up to 1Mbit/s CAN bitrate
  • Industrial Temp range -40C to +85C (since serial No: W700, was before 0C to +70C)
  • USB 2.0 Full Speed, uses FTDI FT245RL (since serial No: W700, was before FT245BL)
  • Philips SJA1000 CAN Controller running at 16Mhz
  • Philips 82C251 CAN Tranceiver (Fully Compatible with ISO 11898-24V)
  • Compliant to CAN 2.0A (11bit ID’s) and CAN 2.0B (29bit ID’s)
  • Supports RTR frames
  • 32 CAN frames deep FIFO buffer for incomming frames in CANtoUSB firmware
  • Time Stamp option in mS for incomming frames
  • CANbus connection according to CiA DS102-1 standard
  • Power supplied via USB
  • Free Interface DLL and ActiveX controller or low level Ascii Commands via USB driver
  • Free Linux driver availible
  • Green LED for CAN activity
  • Red LED for CAN error activity
  • Firmware updatable via USB
  • CE Approved
  • RoHS & WEEE Compliant
Features:

The module plugs directly into a standard USB port and provides a standard DB9 male output to CAN systems according to CiA (CAN in Automation) DS102-1 recommendations. It is self powered from USB. It consumes max 100mA, but normally not more than 60mA (this depends on BUS load and eventual CAN cable errors etc.). Use your own RS232 LIB/drivers (in e.g. Visual Basic, Deplhi, C++ etc.) together with the free Virtual COM port driver or use the free Direct driver DLL (see Download page for drivers). Works on Windows and Linux platforms. Easy to migrate from CAN232 to CANtoUSB with some small software changes. Free Windows Threaded CANtoUSB API DLL or use the ActiveX controller, write applications in a snap.

CAN Pin assignement:

Pin assignement according to CiA recommendations DS102-1.
ThThe CANtoUSB is powered from USB port, so no need to connect external
power on pin 9. Use only CAN_L (pin2), CAN_H (Pin7) and CAN_GND (pin3).
